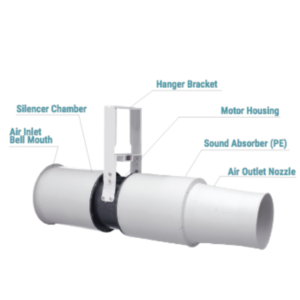

JETFAN MAXAIRVENT MVJ-F SERIES

Maxairvent Jetfan is designed for ventilation of Car park ,Basement, tunnel,…  in  office buildings, shopping centers, hospitals and universities.

Contact Us
Hotline 0902.500.286

THE DETAIL INFORMATION OF PRODUCT

JETFAN MAXAIRVENT MVJ-F SERIES

Maxairvent Jetfan is designed for ventilation of Car park ,Basement, tunnel,…  in  office buildings, shopping centers, hospitals and universities.

  • Airflow: 4,500m3/h – 15,000 m3/h
  • Pressure: 300- 500 mmH2O
  • Power:  7.5kW – 30kW
Technical specifications Size
Items No. Nozzle Dia (mm) Power (kW/A) Pole Voltage (V) Air Volocity (CMH) Speed (m/s) Length (mm) Outer Dia (mm)
MVJ-F200 210 0.1/1A 2 1phase – 220V/50Hz 1300 10.5 840 260
MVJ-F250 250 0.19/1.8A 2 1phase – 220V/50Hz 2350 13.3 1047 260
MVJ-F280 280 0.28/2.2A 2 1phase – 220V/50Hz 2850 12.9 1250 335
MVJ-F350(650) 320 0.133/0.35A 4 1phase – 220V/50Hz
3phase – 380V/50Hz		 2800 10.3 1185 360
MVJ-F350(750) 350 0.25/0.7A 4 1phase – 220V/50Hz
3phase – 380V/50Hz		 4240 12.3 1280 440
